Levighetor MAX

Productivity per hour


Superconcrete 7 Steps
0
Squaremeters
Concrete Grind 1 Step
0
Squaremeters
Terrazzo Grind 5 Steps
0
Squaremeters
Glue/Paint Removal 1 Step
0
Squaremeters
Marble Polishing 5 Steps
0
Squaremeters
Granite Polishing 7 Steps
0
Squaremeters

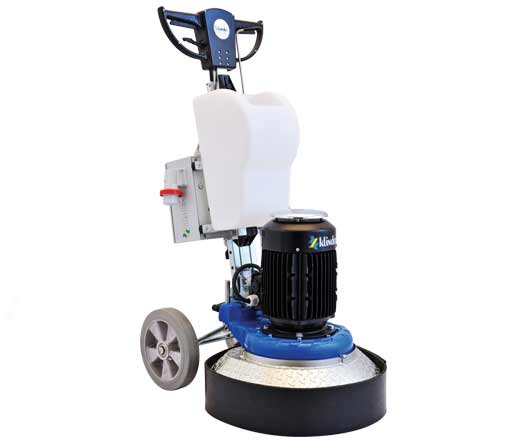

Levighetor Max


Levighetor Max is an evolution of the Levighetor single phase range, ideal for grinding and polishing Marble, Terrazzo, Granite or larger polished concrete surfaces. Due to the three-phase capability and its one-way rotation planetary system the productivity is significantly increased, by up to 2-3 times in comparison to any grinding machine of a similar size.

Features
  • Variable Speed up to 1300 rpm.

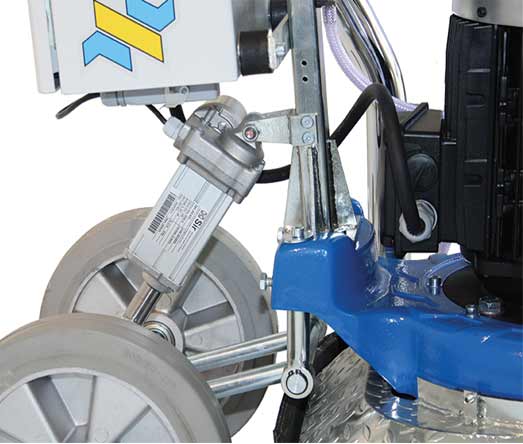

  • Automatic, adjustable control pressure.
  • Increased work section of up to 530mm.
  • Extremely strong metal gear system within the Planetario head without a belt driven system that is subject to breaking.
  • Quick Attack diamond holding system allows quick and easy diamond tool changing without the need for hammers or tools.
Technical Data

  • Motor
    Driver Inverter
    Volts
    Hertz
    Amps
    Speed Tools
    Working Width
    Tool Size
    Water Tank
    Dimensions
    Weight
  • 7HP
    7,5kW
    380-480V
    50/60Hz
    16A
    800rpm
    530mm
    3x240mm
    18L
    95x130x56mm
    152Kg

Key Features and Capabilities



7HP POWERFUL MOTOR

The Levighetor Max comes has a 7HP powerful motor which makes the machine cut faster and deeper more efficiently.

Large Working section

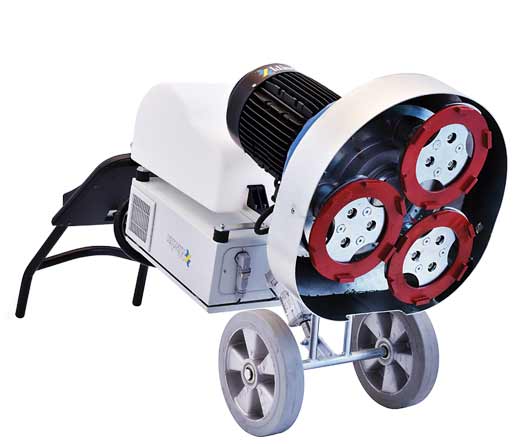

Working section 530mm with 3 number of 240mm tools. Smaller the tools, lesser the performance. Levighetor Max is among the best selling 3 headed grinding machine in the world.

ADDITIONAL EXTRA WEIGHTS

The Levighetor Max can be inserted with additional optional weights which makes the machine to cut deeper more effectively than any other machine in the market.


K800MAX PLANETARY SYSTEM

The standard version includes Planetary K800Max and 18L water tank where the basic version does not include any.

SAFETY FEATURES

The Levighetor Max is higher in safety since the operator is not close or attached to the machine. The adjustable and removable handle helps the operator move, push or change the tools of the machine as he wishes.

THIRD INSERTABLE WHEEL

Since the Levighetor doesn’t comes with a remote control, the third insertable wheel helps the operator in transportation and loading into vehicles.

meet the family

Levighetor


Levighetor 650
Levighetor 640
Levighetor max


Download the Levighetor brochure Here

Checkout the complete range of levighetor series floor grinding machines and explore the best picks for your floor

GRINDING AND POLISHING WITH LEVIGHETOR MAX


Watch how our machines grind and polish different floors

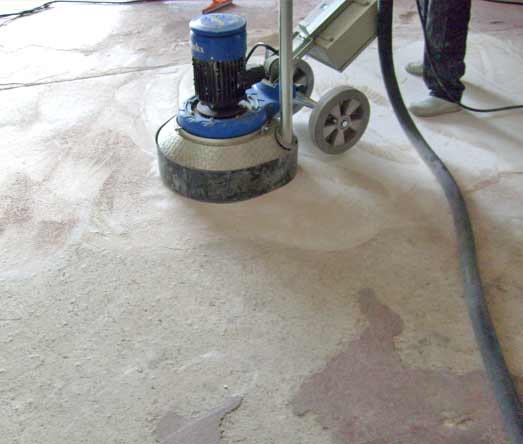

Concrete floors
Granite floors
Marble floors

The Klindex range of grinding machines are specially designed to suit all types of flooring or benches, making them one the most versatile machinery ranges available on the market today with full metal gearing the machines are designed with a clear focus on the needs of the customer.
