Productivity per hour
Expander 580 is an ideal small to medium sized surface floor grinding and polishing machine, consisting of 3 counter rotating heads in a planetary system for perfect surface levelling. With its rigid head planetary with three large sized 240mm tools, the flatness of the surface and the perfect balance of the floor grinding machine is guaranteed. Expander 580 comes with variable speed, adjustable working pressure and lots of other features which places it among the most popular selling machines.
- Working width 580mm with 3 large size 240mm tools
- Powerful 7HP motor
Auto levelling planetary system
- Extremely strong metal gear system within the Planetario head without a belt driven system that is subject to breaking.
- Low noise levels in order to work on any site
- Speed of tools ranging from 300-1300rpm
- No vibrations to the operator
Key Features and Capabilities
The machine design does not focus weight and pressure upon the chassis to make the head ‘float’ over the floor but rather directly on the planetary heads. This ensures that the floor is not ‘wavy’ and that the machine is rigid over the top of the grinding area to ensure the flattest floor possible.
Effective weight distribution

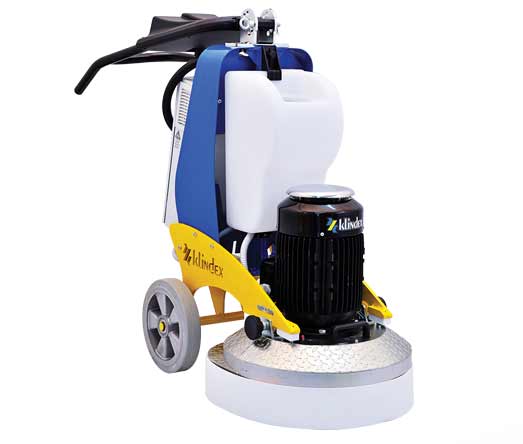

The motor is situated directly over the top of the planetary head alongside the water tank with three well balanced grinding heads for perfect distribution of weight, allowing the highest grinding pressure available. The design permits the machine to work effectively on all surfaces, including concrete as well as all types of stone such as marble and granite.
Adjustable working head pressure
New technology which allows for better and easier grinding. The pressure is adjusted according to an electronic actuator.
Large working width
With a working section of 580mm and 3 heads the Expander 580 is amongst the biggest floor grinding machinery in the world.
A simple clean and grease performed on a regular basis ensures the bearings are well lubricated and extends the lifetime of the components considerably

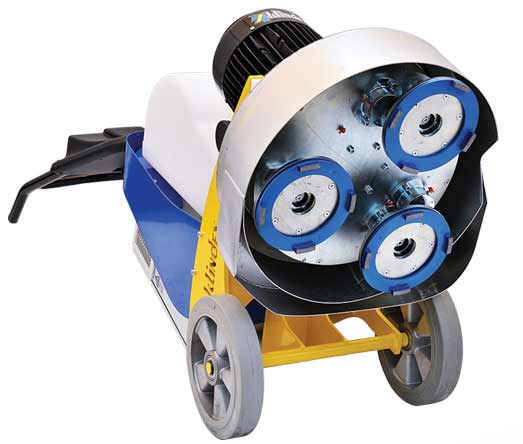

Steel geared Planetary head
Planetary head is 100% tempered steel. With metal gears driving an active planetary system means that the main disc and satellites always run, allowing the machine to work hard with high performance.
meet the family
Download the expander brochure Here
Checkout the complete range of Expander series floor grinding machines and explore the best picks for your floor
Watch how our machines grind and polish different floors
The Klindex range of grinding machines are specially designed to suit all types of flooring or benches, making them one the most versatile machinery ranges available on the market today with full metal gearing the machines are designed with a clear focus on the needs of the customer.
