Expander Series

Key Characteristics of Expander Series

Expander is a series of powerful and reliable grinding and polishing machines that are available in specifications from 4HP to 25HP and 530mm to 1000mm working widths, ideal for medium to large sized areas of work in both residential and commercial. With rigid grinding heads and full metal-gear planetary system with adjustable pressure the flatness of your floor is guaranteed with the Expander range. Also available with with remote control function that allows for completely autonomous working.

Easy to handle and transport with remote control function
94%
Working width ranging from 530mm to 1000mm with 3 x 200mm-240mm tools
85%
Insertable third wheel make the machines easier to transport and loading
98%
Strong gearbox with thermo-hardened steel gears for a longer life
92%
Adjustable planetary to allow for the adjustment of grinding pressure
95%
Minimized noise during working operation
87%

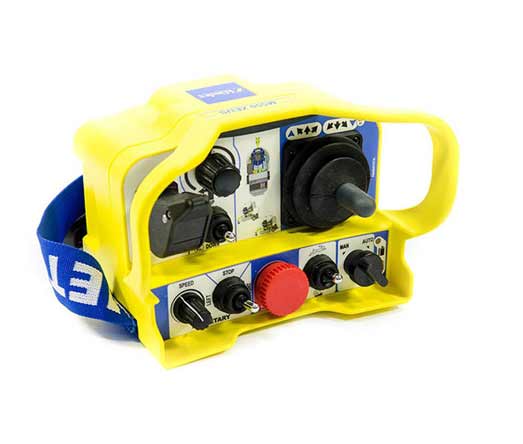

Remote Control and Autopilot


Klindex has developed a new and exclusive technology of remote automatic control for grinding and polishing machines. With this system called “Auto Pilot”, Klindex machines can use the Auto Pilot system to grind the entire area on their own, moving forward, turning, coming back and overlapping the grinding path leaving no areas untreated. This allows for the machine to continue working without interruption and for a more consistent finish than possible with manually operated machinery.

Features

  • Allow the machine to work independently of the operator
  • The machine runs automatically, drastically reducing your labour costs
  • High precision in work leaving no untreated parts

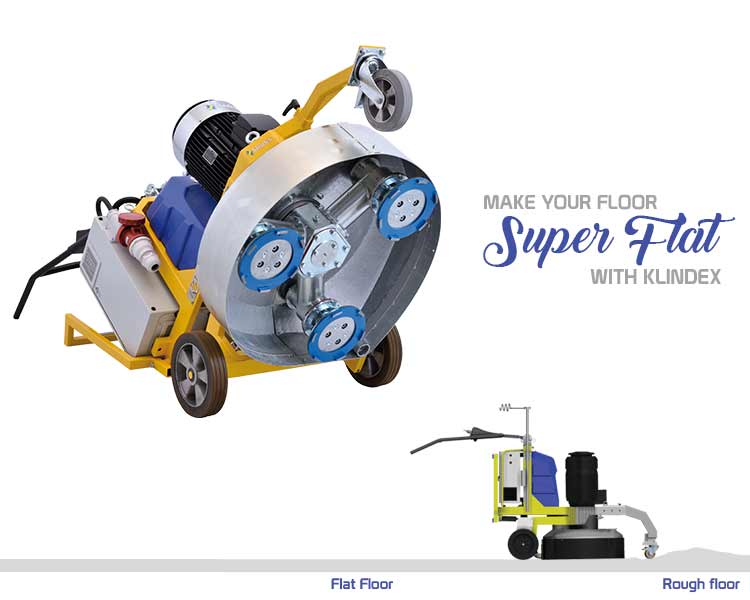

FLAT FLOORs with Rigid head planetary


The Expander range of floor grinders have many characteristics which allow the operator to achieve the ultimate FLAT FLOOR. With a fixed planetary gear driven head that works to grind all flooring surfaces flat, to the machine design which focuses all of the weight and grinding pressure over the top of the working section of the machine. In particular the Expander 1000 features a one metre (1000mm) wide working area with six planetary heads, which along with its 1.35 tonne weight delivers the ultimate flat floor.
Many machines available on the market are designed with a floating grinding head, this allows the machine to follow the contours of the floor and can at times leave a ‘wavy’ appearance to the floor. The combination of the floating head and lighter machine weight reduces the grinding ability of the machine to produce perfectly flat floors.

Features

  • Achieve ultimate flat floor with rigid head planetary system
  • Adjustable working pressure feature allows the operator to manually adjust the working pressure of the planetary head. This improves the grinding production rate and also assures a flatter result to the floor as the grinding heads and working area is/are adjusted to be as level as possible.
  • The spring attachments force the weight of the chassis onto the working area allowing the machine to have some slight movement during the grinding work, but always focusing the downward grinding pressure.

meet the family

expander range

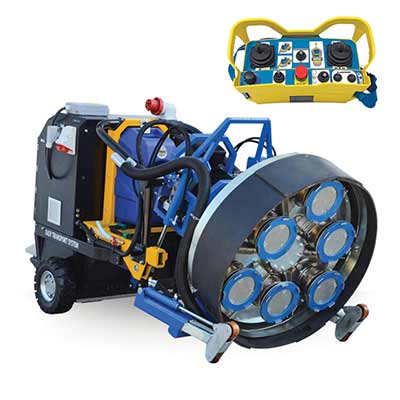

Expander 1000

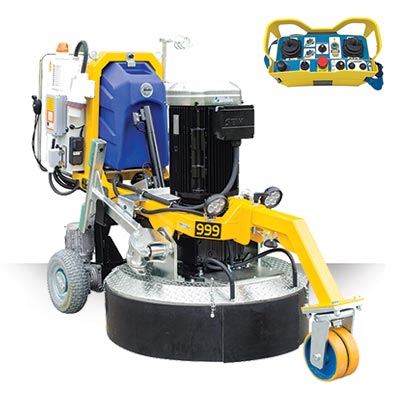

Expander 999

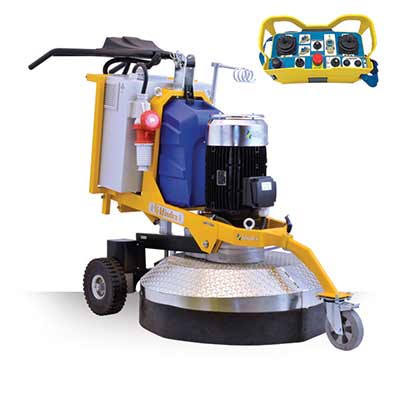

Expander 950 RX

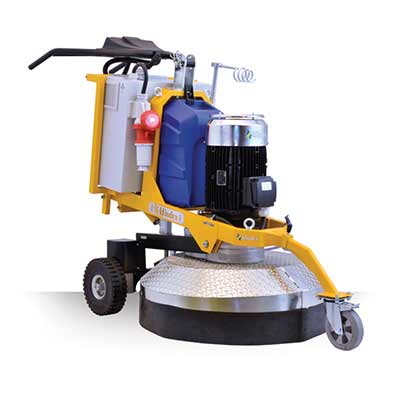

Expander 950

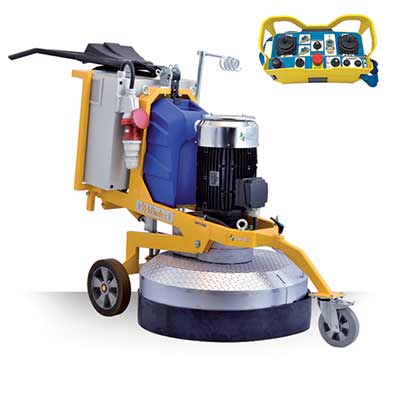

Expander 850 RX

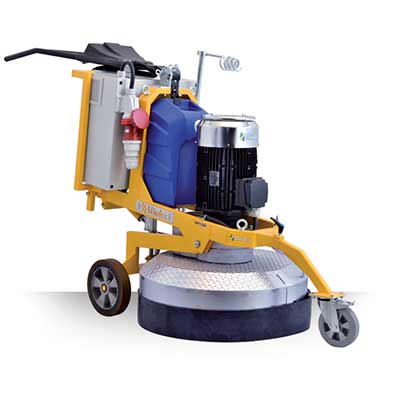

Expander 850

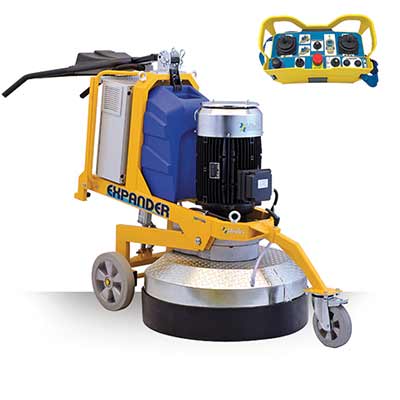

Expander 750 RX

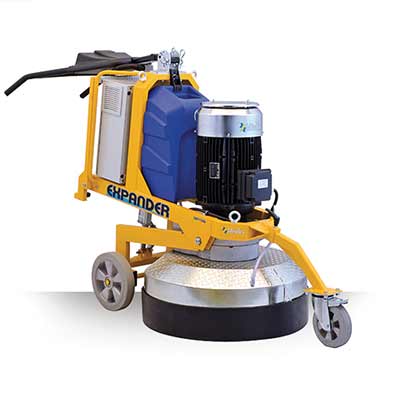

Expander 750

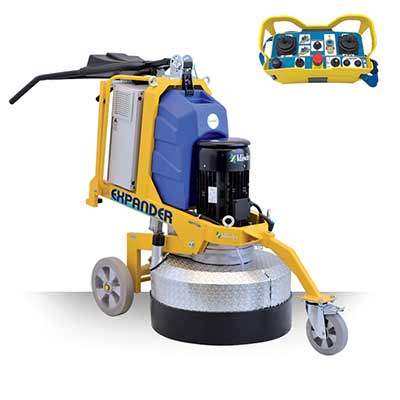

Expander 650 RX

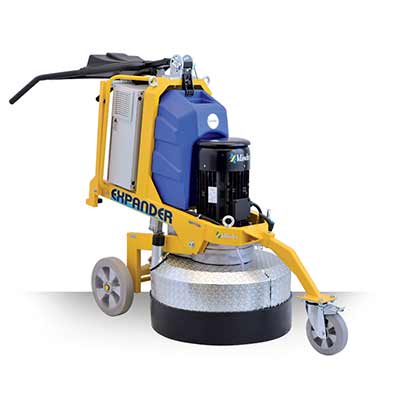

Expander 650

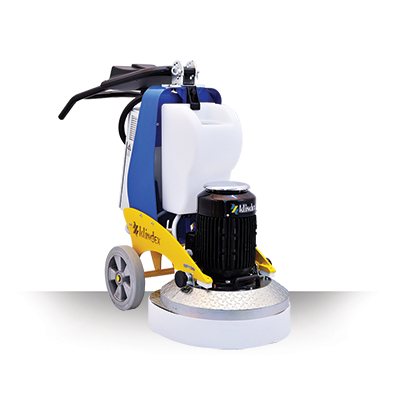

Expander 580

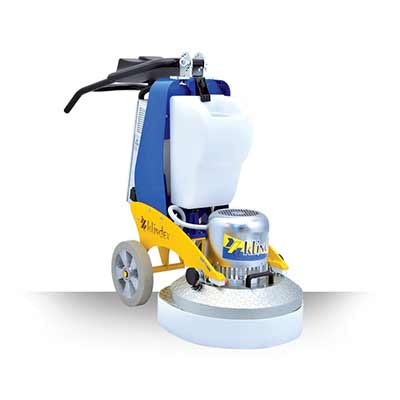

Expander 530




Features and Capabilities


Remote Control with Autopilot

Significantly reduce stress to the operator while increasing productivity – the perfect combination. The Autopilot is the next step in the evolution of floor grinding. The Autopilot is designed to allow the machine to work independently of the operator and run automatically, drastically reducing your labor costs.

Range of working widths

Available in sizes from 530mm to 1000mm, with grinding head size from 200mm to 240mm


Steel geared Planetary head

Planetary head is 100% tempered metal gear driven. Active planetary system means that the main disc and satellites always run, allowing the machine to work hard with high performance.

Rigid Head

The machine design does not focus weight and pressure upon the chassis to make the head ‘float’ over the floor but rather directly on the planetary heads. This ensures that the floor is not ‘wavy’ and that the machine is rigid over the top of the grinding area to ensure the flattest floor possible.


Third wheel

Third front wheel makes the machine easy to transportation and handle. It allows to regulate the working pressure and inclination on the planetary head which is useful when working on uneven floors.

Adjustable working head pressure

New technology which allows for better and easier grinding. The pressure is adjusted according to an electronic actuator.


Water Tank

Allows the option of working with Water during grinding and polishing.

Aluminium Shroud

Hood composed of high strength aluminium steel covers the working area to protect the diamond tools and allow the machine to work close to the wall


Effective weight distribution

The motor is placed directly over the top of the planetary head along with the water tank with three well balanced grinding heads for perfect balance and allow the highest grinding pressure available. The design allows the machine to work effectively on all surfaces, including concrete as well as all types of stone such as marble and granite.

Easy maintenance

A simple clean and grease performed on a regular basis ensures the bearings are well lubricated and extends the lifetime of the components considerably


No belts, a full steel gear driven planetary

A gear driven planetary grinder means lower operating costs than belt driven grinders, as belt changes are extremely expensive and time consuming. Also, belts do not transfer torque as effectively as gears meaning that less grinding pressure is available.

Handle

Adjustable position of the handle for a comfortable working position. It also can be reversed to allow the operator to drive the machine from in front and not only from the rear.


Splash guard

Machine comes with a tough, reinforced neoprene splash guard that works excellent for both wet and dry use.

Optional weights

Can ádd weights to increase grinding power and speed

Download the expander brochure Here

Checkout the complete range of Expander series floor grinding machines and explore the best picks for your floor

Watch how our machines grind and polish different floors

Concrete floors
Granite floors
Marble floors

The Klindex range of grinding machines are specially designed to suit all types of flooring or benches, making them one the most versatile machinery ranges available on the market today with full metal gearing the machines are designed with a clear focus on the needs of the customer.
